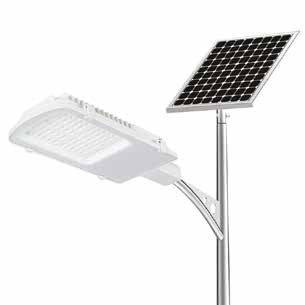

Smart Solar Street Light
The BM-RM Series intelligent controller is the first solar light controller combined with a solar charge controller and ZigBee/Lora module, all in one. It is also connected via GPRS concentrator to a remotely monitored PC or cellphone application. The controller is integrated with a LED driver and infrared sensor, complete with a timer and dimming function.
Users can not only program battery types, charging voltage, time and dimming value via remote control BS-RC to all BS-RM series controllers, but can also program the parameters from PC software and applications. It also has a self-dimming function automatically controlling LED lights by turning them on or off.
R0,00
Additional Product Details
LED Lamp (100W):
| Model: | BS-GMX-01-100W |
| Lamp Power: | 100W |
| Input Voltage: | DC 12V |
| LED Chip: | Epistar |
| Lamp Efficiency: | 130 lm/W-140 lm/W |
| Luminous Flux: | 13 000- 14 000 lumens |
| CRI: | >70 |
| Power Factor: | 95% |
| Colour Temperature: | 5 700k- 6 200k |
| Beam angle: | 120°- 70° |
| Life Span: | >50 000 hours |
| IP Rate: | IP66 |
| Working Temperature: | -15°C~ 60°C |
| Working Humidity: | 10%~90% RH |
| Lamp Fixture: | High pressure Die-Casting |
| Lamp Arm Adaptor: | Aluminium, Corrosion resistant, Diameter 40 mm, Built inside light fixture |
| Certification: | CD, ROSH, IK10< IP66, 62471 Approval |
Solar Panel Specifications:
| Rated Power: | 60W |
| Silicon type: | Mono |
| Pmax: | 200Wxpcs |
| Tolerance: | ±3W |
| Wmp: | 18V |
| Imp: | 11.22A |
| Voc: | 21.60V |
| Isc: | 11.36A |
| Conversion Efficiency: | 17.5%~18.5% |
| Operating Temperature: | -40°C~ 85°C |
| Surface Maximum Load: | 5400Pa |
| Allowable Hall Load: | Ø25mm_23m*s |
| Life Time: | >25 years |
| Warranty: | Power is more than 90% in 10 years and 80% in 25 years |
| Certification: | CE, RoHS, IEC6 1215, SG |
| Dimensions: | 680*1580*30m |
| Net Weight: | 9.2Kg/pc |
